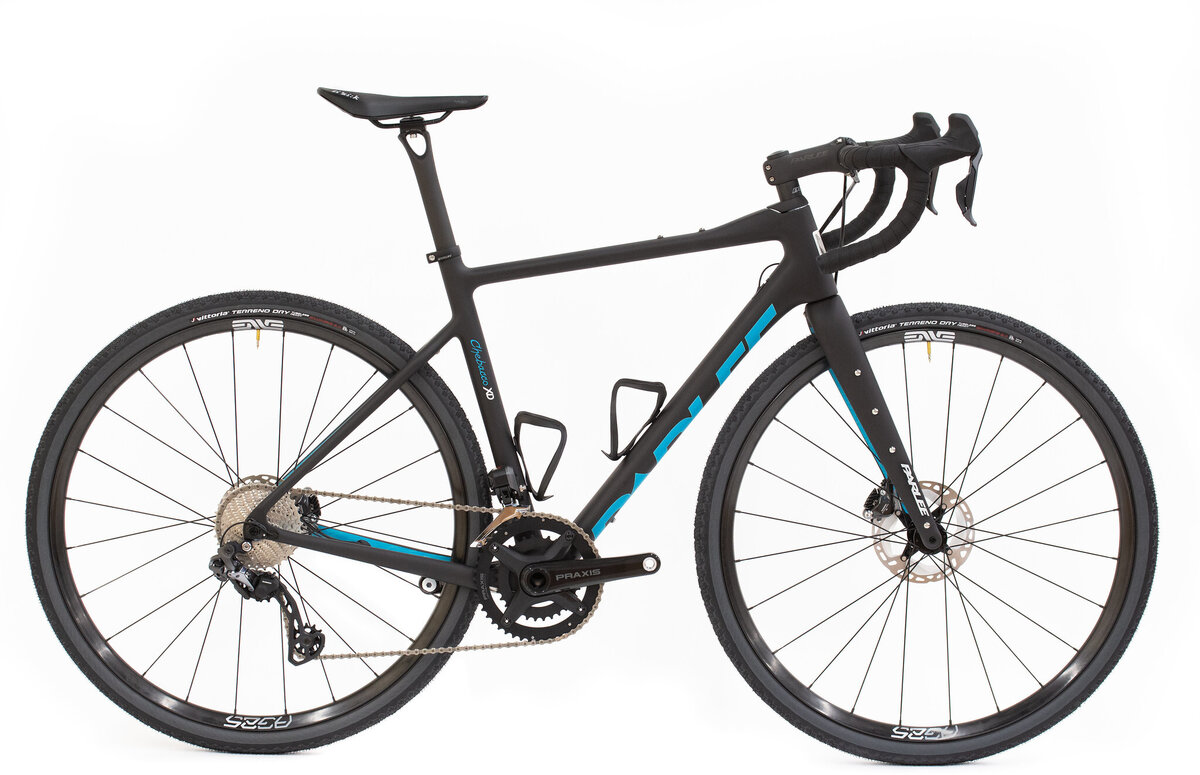

Parlee Cycles Chebacco XD LE GRX 815 Di2

Parlee Cycles Chebacco XD LE GRX 815 Di2
  • Color: Black Matte
Color: Black Matte
Size: Select size
Please select options Unavailable


When we first introduced the Chebacco range in 2015, we had no idea it would soon become our best-selling model. The Chebacco XD LE takes the universally loved ride quality of the original go-anywhere "quiver-killer" and adds additional traction and comfort (through increased tire capacity) and vastly increased on-bike storage to make an even more capable bicycle. The LE variant also includes premium carbon parts and the option for custom kit configurations and paint.


Geometry Chart:
Frame SizeSmallMediumMedium/LargeLargeX-Large
Seat Tube (C-C) (cm) 45.5 47.2 49.2 50.6 52
Top Tube Length (virtual) (cm) 52.5 54.5 56 57.5 59.5
Head Angle 71.5° 71.75° 71.75° 71.75° 72°
Seat Tube Angle 74° 73.5° 73° 73° 72.5°
Chainstay Length (cm) 43 43 43 43 43
Bottom Bracket Drop (cm) 7 7 7 7 7
Fork Rake (cm) 4.7 4.7 4.7 4.7 4.7
Standover Height (cm) 75.2 76.9 78.7 80.2 82.3
Head Tube Length (cm) 12.4 14.1 15.8 17.4 19.7
Front Center (cm) 58 59.4 60.4 61.9 63.1
Wheelbase (cm) 100 101.4 102.4 103.9 105.2


Frame PARLEE High Mod XD, Compact, multi-surface gravel geometry
Fork PARLEE XD, Multi-surface disc, tapered steerer, integrated crown race, 12mm through axle
Wheels Enve AG25
Tires Vittoria Terrano Dry
Bottom Bracket Parlee Shimano PF30 BB
Crankset Praxis Zayante Carbon Crankset
Chainrings 48/32
Shifters GRX 815 DI3
Rear Derailleur FD-RX815, GRX REAR 11-SPEED
Cassette/Freewheel CS-HG800-11, 11-34T
Chain CN-HG700-12
Brakes GRX ST-RX816
Rotors SM-RT8000,S 140/161
Brake Levers GRX 815 DI3
Handlebars PARLEE Handlebar, 35mm Clamping, matte Black SKB
Tape/Grips Arundel Bar Tape - Black
Stem PARLEE Stem, 35mm Clamping, matte Black SKB
Headset Cane Creek Carbon Headset
Seatpost 31.6 Diameter/0mm offset seat post PARLEE SKB
Saddle Ergon SM10 Sport Men Stealth Gravel
Pedals Sold separately
Accessories & Extras Parlee Carbon Bottle Cages

* Subject to change without notice.

Part Numbers

Option MPN
Black Matte / Small CBCXDLE51R815LE22
Black Matte / Medium CBCXDLE53R815LE22
Black Matte / Medium/Large CBCXDLE55R815LE22
Black Matte / Large CBCXDLE57R815LE22
Black Matte / X-Large CBCXDLE59R815LE22
